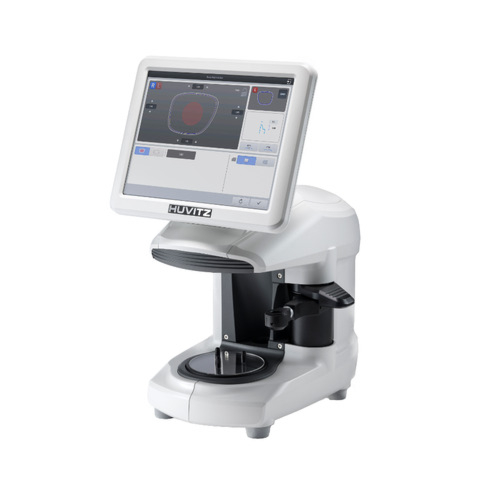

Huvitz HBK-410 Smart-Blocker

Kenmerken:

Blocking Method: Manual (Push down)
Blocking Mode: Box center, Optical center
Blocking Guide: 3-Dot, Bi-focal, Progressive
Digital Scan: Frame shape, Hole/Slot/Notch, Scan & Cut shape
Blocking Assistance: Laser mark Visualization, PD/OH live adjustment, Lens shortage check, Block attachment check, Auto Brightness control, Camera zoom
Blocking Tolerance: ±0.5mm
Axis Tolerance: ±1°
Layout Factors: FPD, PD(Binocular, Monocular), DBL, OH(Y, Boxed height, Mixed height), Centering Method(Box center, Optical center)
Edging Factors: Lens material(Plastic, Polycarbonate, High Index,Glass, Trivex), Edging Type(Bevel, Groove, Flat, Mini bevel, Patial, bevel, Patial grooving, Dual grooving,Hybrid grooving, Asymmetric bevel, Semi-U bevel,Step bevel),Edging Position(Front %, Front mm, Rear mm, Base,curve, Auto, Manual), Edging Option(Polishing, Safty bevel, Safty mode)
Functions: Job Manager, Digital Pattern, Hole Editor, Asymmetric, Bevel Editor, Step Bevel Editor, Scan & Cut data , Editor, Image File Converter, OMA Import/Export, CAD(dxf) Import/Export, R-L Shape Correction, Lens diameter mesurement, Auto save & transmission of job files
Utilities: Tiltable LCD (Viewing Angle 15~70°), SD Card Storage of 16GB(Support Up to 32GB), Barcode Reader Interface
Display: 9.7 inch Color TFT LCD (1024x768), with Touch Screen
Dimensions / Weight: 236(W) x 268(D) x 422(H)mm / 8kg
Power Supply: AC 100~240V 50/60Hz
Power Consumption: 20W
